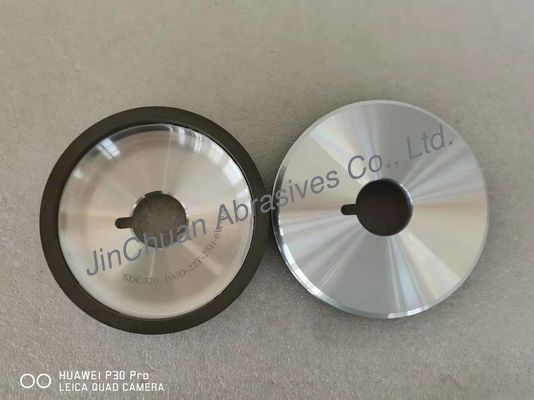

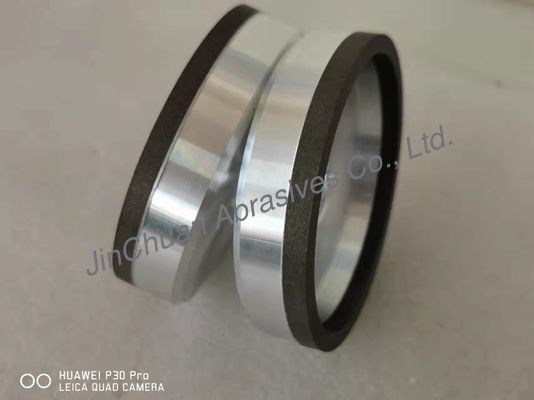

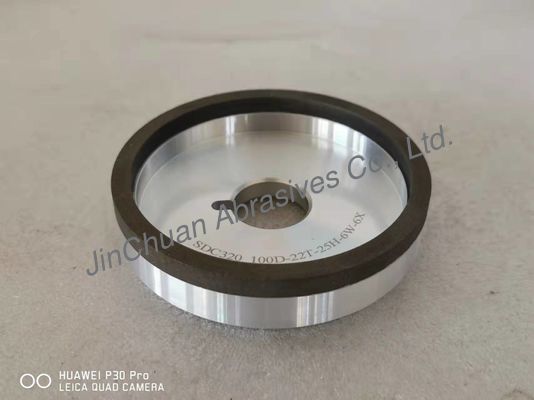

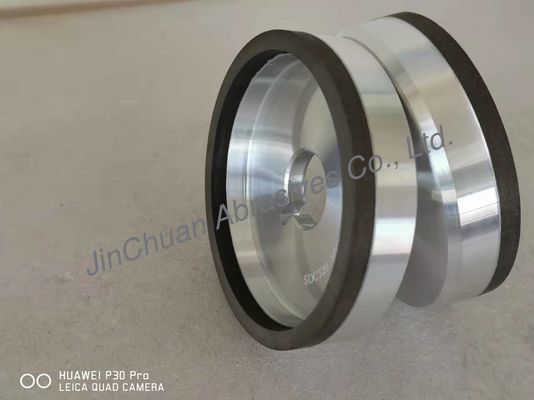

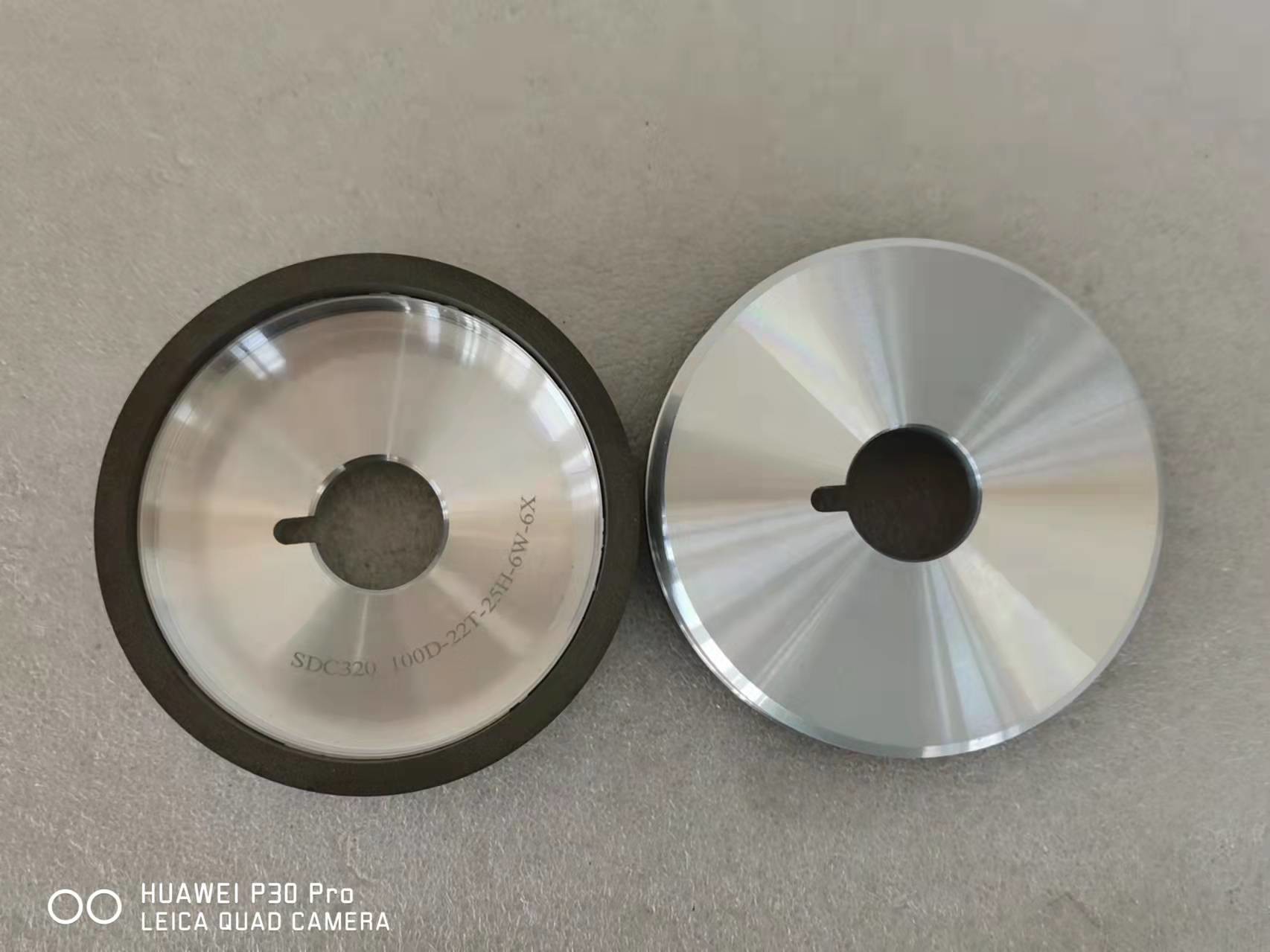

ligação Diamond Grinding Wheel D320 C100 da resina 6A2
Product Details
| Tamanho: | 100*22*25*6*6 | forma: | Em forma de xícara |
|---|---|---|---|
| Abrasivo: | Resina | Uso: | moedura |
| Grão: | D320 | Material: | De alumínio |
| Nome do produto: | Ligação Diamond Grinding Wheels da resina | ||
| Destacar |
ligação Diamond Grinding Wheel da resina 6A2,Ligação Diamond Grinding Wheel da resina D320,Ligação Diamond Grinding Wheel da resina C100 |
||
Product Description
a roda de moedura do diamante 6A2 é usada para ferramentas de PCD e de PCBN, vidro, cerâmica, quartos, semicondutores, e outros materiais não metálicos.
| Modelo | D (milímetro) | T (milímetro) | H (milímetro) | W (milímetro) | X (milímetro) |
| 6A2 | 100 | 40 | 32 40 | 3 5 10 15 20 | 10 |
| 125 | 40 | 32 40 | 5 10 15 20 | 10 | |
| 150 | 40 | 32 40 | 5 10 15 20 | 10 |
Product Highlights
a roda de moedura do diamante 6A2 é usada para ferramentas de PCD e de PCBN, vidro, cerâmica, quartos, semicondutores, e outros materiais não metálicos. Modelo D (milímetro) T (milímetro) H (milímetro) W (milímetro) X (milímetro) 6A2 100 40 32 40 3 5 10 15 20 10 125 40 32 40 5 10 15 20 10 150 40 32 ...
203.2mm o CBN madeira-Mizer de *22.23mm B213/8 da” que aponta as rodas/galvanizou o CBN que a roda para a faixa viu Sharping
Cbn Sharpening Wheels Used For Wood Mizer 10/30 Size Eight Inches CBN SHARPENING WHEELS Description Electroplated CBN (Cubic Noron Nitride) grinding wheels need nickel coated . Electroplating have many anvantages . Electroplated grinding wheel has higer working efficiency and longer servicetime , Its speed has also been improved . The grinding wheel will be more wear-resistant and sharp , they specialize in sharpening woodworking band saws . If you need wood -mizer 10/30
Combinando o alargamento convencional de afiação ordinário do Reamer da roda de diamante do Cbn
Honing Reamer Is Formed By Combining Ordinary Honing And Conventional Reaming HONING REAMER Description Plover hinge also called single stroke honing, is ordinary honing combined with conventional reaming technology, formed a kind of new craft, micron grade precision machining, the machining hole, blind hole hole and groove, hole keyway, steps, is the engine fuel pump, connecting rod, fork, hydraulic valve body, valve cover, air bearings, precision gears, mould guide bush,
As rodas abrasivas galvanizadas de rodas de moedura do CBN/CBN os dentes Gap unem-se
Electroplated Cbn Sharpening Grinding Wheels Used For Cutting A Band Teeth CBN SHARPENING WHEELS Description Cubic boron nitride has very high hardness, thermal stability and chemical inertness, as well as good red transparent shape and wide band gap width and other excellent properties, its hardness is second only to the diamond, but the thermal stability is much higher than the diamond, has a greater chemical stability of iron series metal elements . Specification Size
CBN que aponta as rodas para as lâminas de madeira 7/39.5 da serração da faixa com vida ativa longa e bom apontando a superfície
CBN sharpening wheels for wood band saw sharpening same profile according to customer requirement Description Mostly used CBN wheels are for band saw of following producers: WM Profiles, Mill, Simonds, Dakin-Flathers Ripper 37(22mm,19mm), Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others Different wheel profiles for all kind of wood and seasons are available * 10/30 - mostly used universal grinding wheel profile * 9/29 - perfectly
