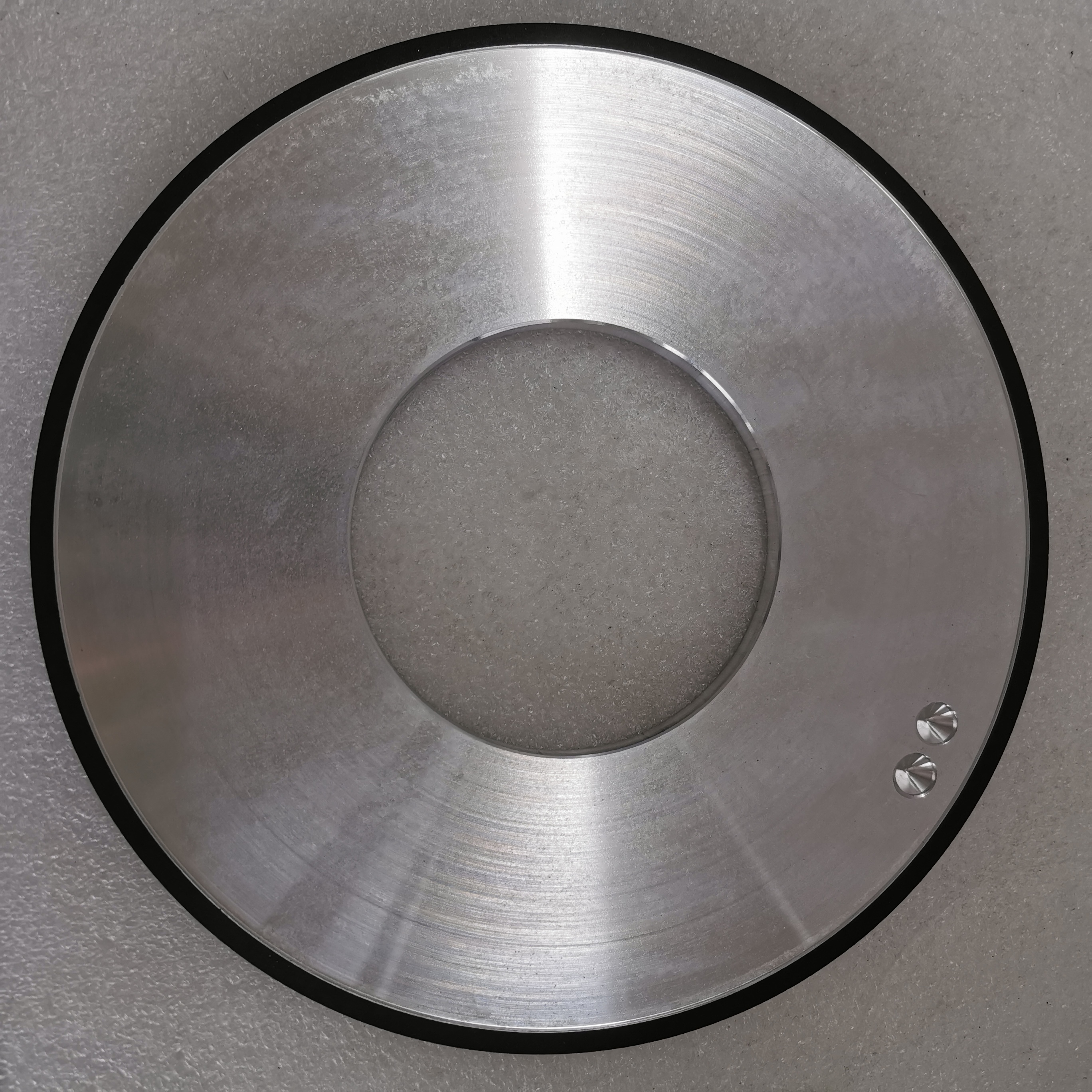

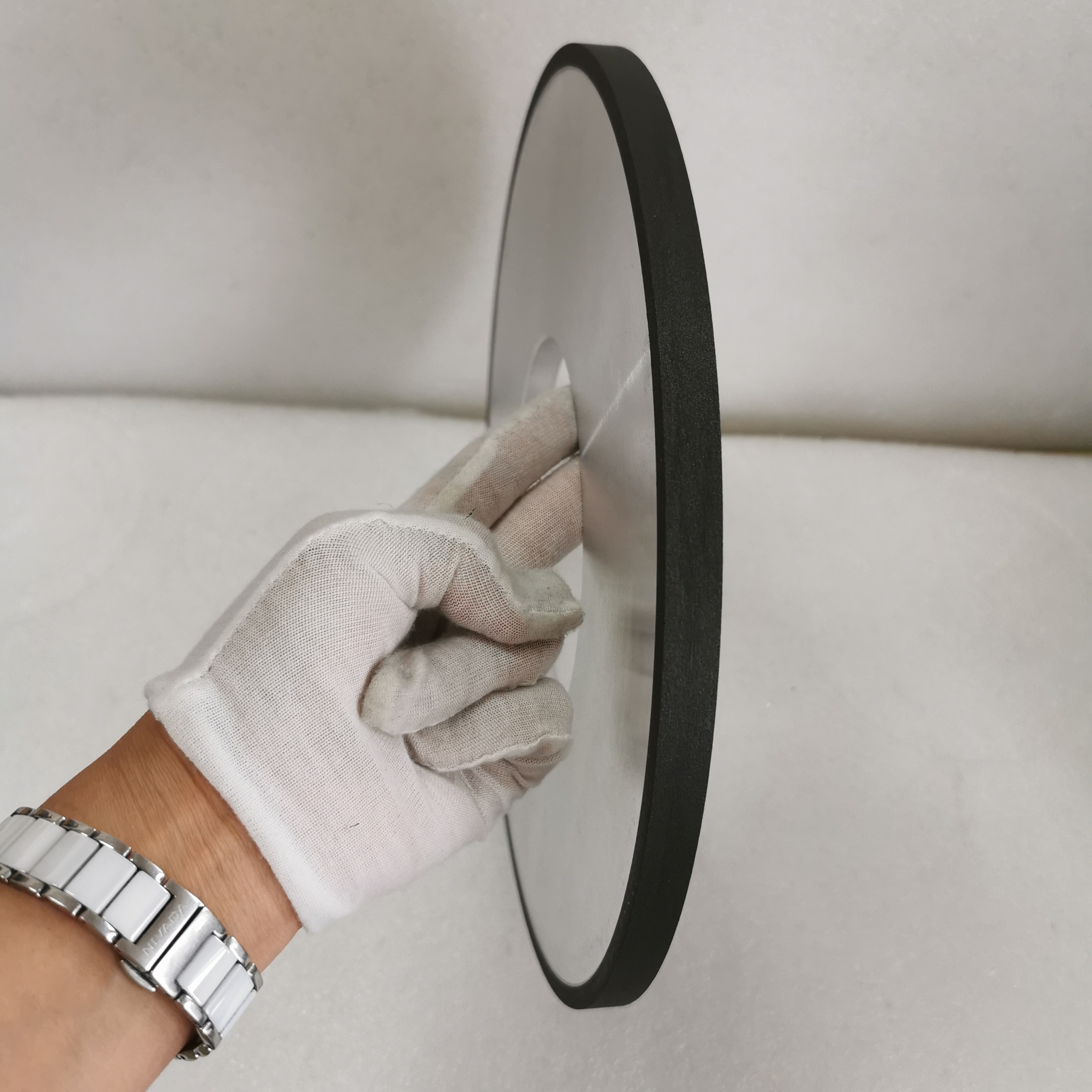

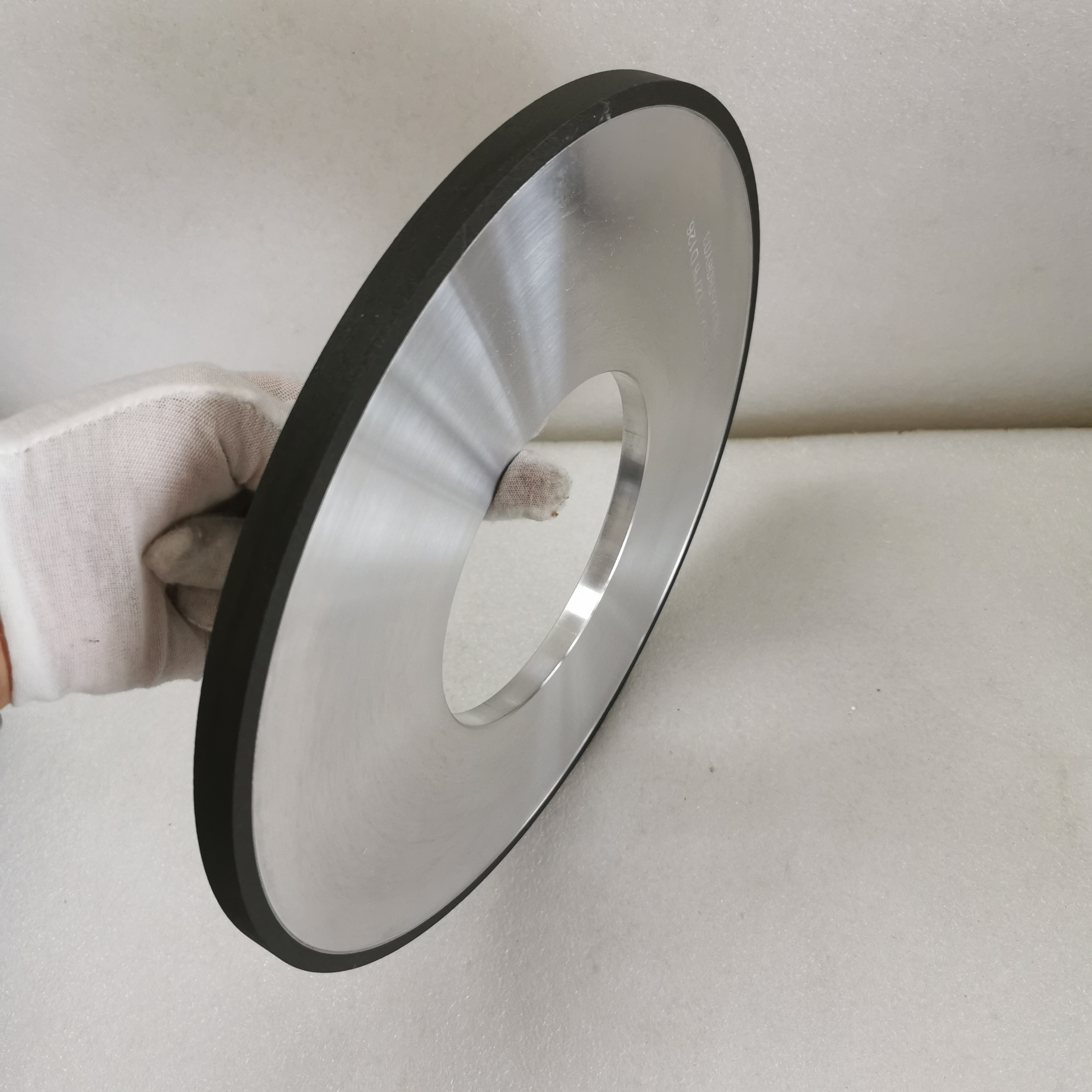

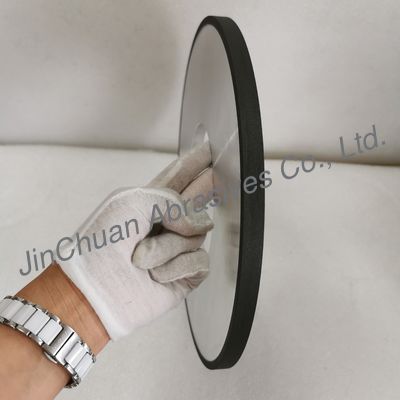

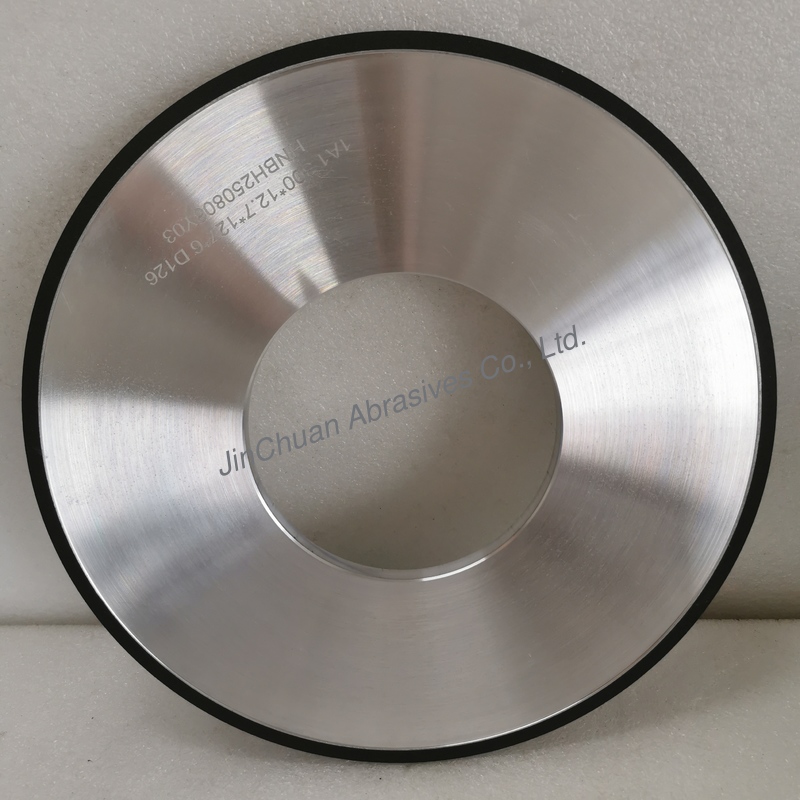

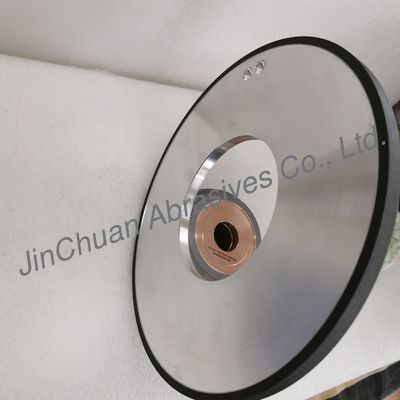

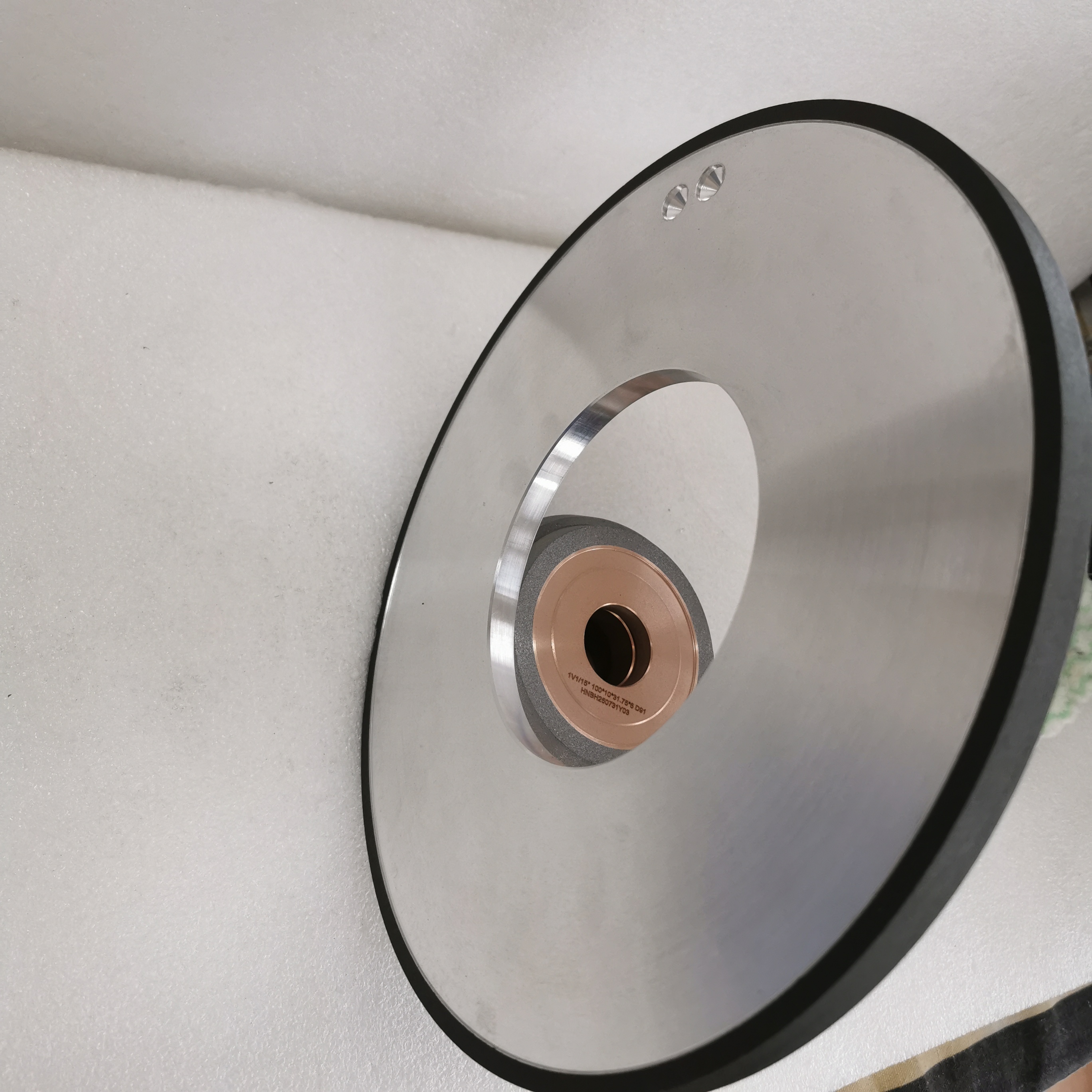

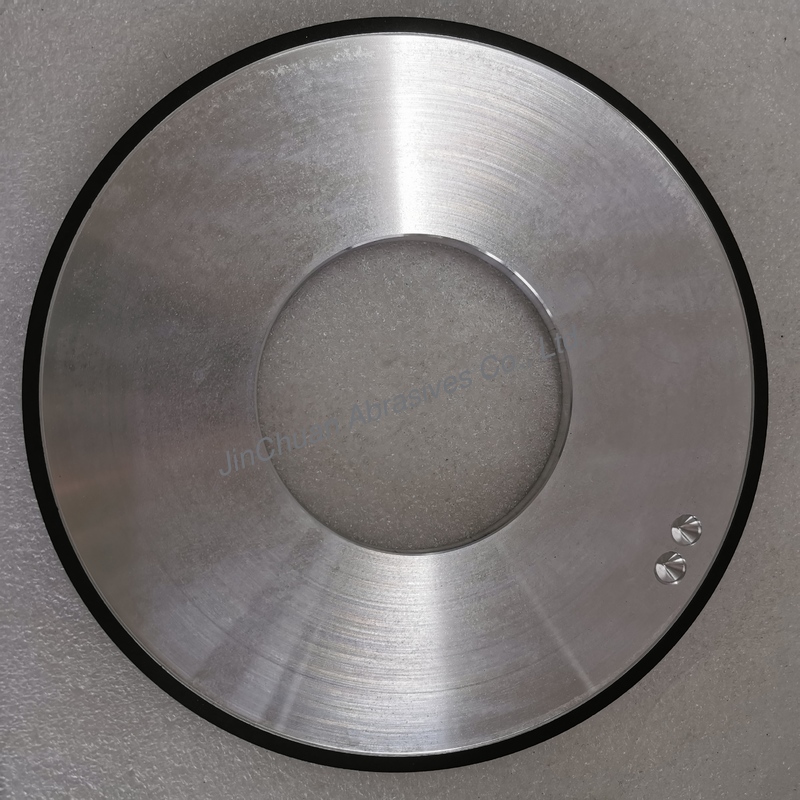

Resin Bond Diamond Parallel Grinding Wheel 1A1 300*12.7*127*6mm D126
Product Details
| Diâmetro: | 300 mm | Grossura: | 12,7 mm |
|---|---|---|---|
| Buraco interno: | 127 mm | Largura do abrasivo: | 6mm |
| Aplicativo: | Processamento de material duro e quebradiço | Grit: | D126 |
| Ligação: | Resina | Forma: | Plano |
| Embalagem: | Caixa especial de exportação | ||
| Destacar |
resin bond diamond grinding wheel,1A1 parallel grinding wheel,D126 diamond grinding wheel |
||
Product Description
Product Description:
Resin diamond grinding wheel is a high-performance grinding tool with resin as the binder and diamond abrasive as the cutting body. It combines the ultra-high hardness of diamond and the flexibility of resin binder, and is suitable for high-precision and high-efficiency processing of hard and brittle materials such as ceramics, glass, semiconductors, and cemented carbide.
Resin-bonded diamond grinding wheels offer exceptionally high surface finish quality. Thanks to their excellent self-sharpening properties and the inherent elasticity of the resin bond, they effectively absorb grinding vibrations, resulting in extremely low surface roughness (Ra), preventing surface damage such as burns and micro-cracks on the workpiece, and ensuring perfect machining integrity.
Resin-bonded diamond grinding wheels also offer the advantages of low grinding forces and temperatures. Their sharp cutting characteristics reduce grinding resistance and energy consumption. Combined with coolant, they effectively control the temperature of the grinding zone, making them particularly suitable for machining heat-sensitive materials.
This grinding wheel has the following product features: fast feed, high grinding efficiency, and relatively slow grinding wheel consumption; good self-sharpening, low heat generation during grinding, not easy to clog, and reduced work burns during grinding; the grinding wheel has a certain degree of elasticity, which is beneficial to improving the roughness of the workpiece surface. It is mainly used in processes such as fine grinding, semi-fine grinding, knife grinding, and polishing; the grinding wheel is cured at low temperature, with a short production cycle, and the equipment and supply process are convenient, fast and simple; our company has professional technology and equipment.
Features:
- High grinding efficiency
- Good self-sharpening
- Low grinding temperature
- High surface quality
- Lightweight design
- Wide adaptability
- Excellent cost-effectiveness
Technical Parameters:
| Material | Diamond |
| Package | cardboard box |
| Thickness | 12.7mm |
| Base Body | Resin Bond |
| Profile | High-quality grinding |
| Grit Size | D91 |
| Country Of Origin | China |
| Packing | Standard Exported Carton Packing |
| Hs Code | 6804211000 |
| Application | High-end precision manufacturing |
Applications:
This grinding wheel is primarily used for precision machining of high-hardness materials:
Carbide: tool sharpening and CNC blade shaping
Non-metallic materials: ceramic body trimming and optical glass cutting
Semiconductor industry: wafer backside thinning and magnetic material polishing
In stone processing, it is suitable for grooving agate rough stones and cutting special shapes in granite.
Our company
We have experienced engineers and technical experts, professional industrial knowledge and technical services to help customers find the best solutions.Our sophisticated production equipment and advanced testing equipment, so that our products good performance.Constantly pursue new technology and continuous improvement.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you.
